Cable Stockings and Hose Restraints
At NCG, we focus on locally designed and manufactured cable stockings and hose restraints. With our specialised equipment and experienced team, we have the capability to deliver both standard and custom configurations.
Cable Stockings
A cable stocking (also known as a sock or grip) is a woven sock that slips over the cable to make an attachment point at the end. This is typically used for hauling, pulling or restraining electrical cables. Due to the helical design, the stocking shrinks around the cable. And the tighter you pull the eye, the tighter this grips the cable.
NCG offer a comprehensive range of Australian made cable stockings:
Single Eye Cap
The most common form of cable stocking, single eye caps are used for general hauling applications. The tubular design slips over the end of the cable, forming an attachment point at the end. These grips are available in soft or thimble eye variations and in different material configurations to suit specific applications.
C1 - Galvanised Strand | Alloy Ferrule

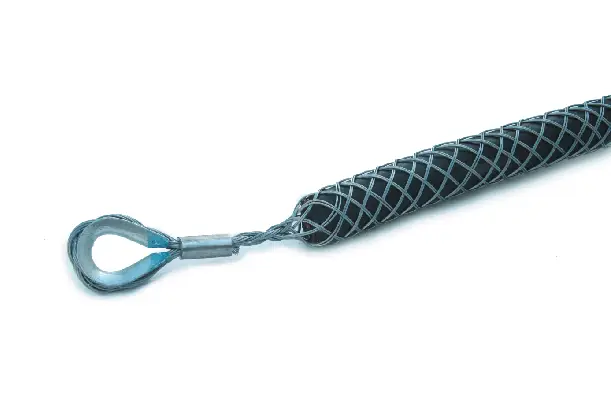

C2 - Galvanised Strand | Alloy Ferrule | Galvanised Thimble
C3 - Galvanised Strand | Copper Ferrule
C4 - Galvanised Strand | Copper Ferrule | Galvanised Thimble
C5 - Stainless Steel Strand | Copper Ferrule
C6 - Stainless Steel Strand | Copper Ferrule | Stainless Steel Thimble
C7 - Stainless Steel Strand | Stainless Steel Ferrule | Stainless Steel Thimble
C8 - Kevlar Strand | Polymer Sheath | Single Eye
Construction
- Galvanised Strand
- Alloy Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| C1006 | 6-12 | 350 | 5 |
| C1010 | 10-14 | 350 | 5 |
| C1014 | 14-19 | 400 | 9 |
| C1019 | 19-28 | 500 | 15 |
| C1028 | 28-40 | 600 | 24 |
| C1040 | 40-55 | 800 | 35 |
| C1055 | 55-75 | 900 | 62 |
| C1075 | 75-95 | 1000 | 98 |
| C1095 | 95-120 | 1200 | 133 |
| C1120 | 120-150 | 1400 | 187 |
| C1150 | 150-190 | 1600 | 283 |
Construction
- Galvanised Strand
- Alloy Ferrule
- Galvanised Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| C2006 | 6-12 | 350 | 5 |
| C2010 | 10-14 | 350 | 5 |
| C2014 | 14-19 | 400 | 9 |
| C2019 | 19-28 | 500 | 15 |
| C2028 | 28-40 | 600 | 24 |
| C2040 | 40-55 | 800 | 35 |
| C2055 | 55-75 | 900 | 62 |
| C2075 | 75-95 | 1000 | 98 |
| C2095 | 95-120 | 1200 | 133 |
| C2120 | 120-150 | 1400 | 187 |
| C2150 | 150-190 | 1600 | 283 |
Construction
- Galvanised Strand
- Copper Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| C3006 | 6-12 | 350 | 5 |
| C3010 | 10-14 | 350 | 5 |
| C3014 | 14-19 | 400 | 9 |
| C3019 | 19-28 | 500 | 15 |
| C3028 | 28-40 | 600 | 24 |
| C3040 | 40-55 | 800 | 35 |
| C3055 | 55-75 | 900 | 62 |
| C3075 | 75-95 | 1000 | 98 |
| C3095 | 95-120 | 1200 | 133 |
| C3120 | 120-150 | 1400 | 187 |
| C3150 | 150-190 | 1600 | 283 |
Construction
- Galvanised Strand
- Copper Ferrule
- Galvanised Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| C4006 | 6-12 | 350 | 5 |
| C4010 | 10-14 | 350 | 5 |
| C4014 | 14-19 | 400 | 9 |
| C4019 | 19-28 | 500 | 15 |
| C4028 | 28-40 | 600 | 24 |
| C4040 | 40-55 | 800 | 35 |
| C4055 | 55-75 | 900 | 62 |
| C4075 | 75-95 | 1000 | 98 |
| C4095 | 95-120 | 1200 | 133 |
| C4120 | 120-150 | 1400 | 187 |
| C4150 | 150-190 | 1600 | 283 |
Construction
- Stainless Seel Strand
- Copper Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| C5006 | 6-12 | 350 | 4 |
| C5010 | 10-14 | 350 | 4 |
| C5014 | 14-19 | 400 | 7 |
| C5019 | 19-28 | 500 | 12 |
| C5028 | 28-40 | 600 | 19 |
| C5040 | 40-55 | 800 | 27 |
| C5055 | 55-75 | 900 | 48 |
| C5075 | 75-95 | 1000 | 79 |
| C5095 | 95-120 | 1200 | 105 |
| C5120 | 120-150 | 1400 | 147 |
| C5150 | 150-190 | 1600 | 225 |
Construction
- Stainless Steel Strand
- Copper Ferrule
- Stainless Steel Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| C6006 | 6-12 | 350 | 4 |
| C6010 | 10-14 | 350 | 4 |
| C6014 | 14-19 | 400 | 7 |
| C6019 | 19-28 | 500 | 12 |
| C6028 | 28-40 | 600 | 19 |
| C6040 | 40-55 | 800 | 27 |
| C6055 | 55-75 | 900 | 48 |
| C6075 | 75-95 | 1000 | 79 |
| C6095 | 95-120 | 1200 | 105 |
| C6120 | 120-150 | 1400 | 147 |
| C6150 | 150-190 | 1600 | 225 |
Construction
- Stainless Seel Strand
- Stainless Steel Ferrule
- Stainless Steel Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| C7006 | 6-12 | 350 | 4 |
| C7010 | 10-14 | 350 | 4 |
| C7014 | 14-19 | 400 | 7 |
| C7019 | 19-28 | 500 | 12 |
| C7028 | 28-40 | 600 | 19 |
| C7040 | 40-55 | 800 | 27 |
| C7055 | 55-75 | 900 | 48 |
| C7075 | 75-95 | 1000 | 79 |
| C7095 | 95-120 | 1200 | 105 |
| C7120 | 120-150 | 1400 | 147 |
| C7150 | 150-190 | 1600 | 225 |
Construction
- Kevlar Strand
- Polymer Sheath
- Single Eye
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| C8006 | 6-11 | 350 | 12 |
| C8010 | 10-14 | 350 | 12 |
| C8014 | 14-19 | 400 | 12 |
| C8019 | 19-28 | 500 | 18 |
| C8028 | 28-40 | 600 | 30 |
| C8040 | 40-55 | 800 | 36 |
| C8055 | 55-75 | 900 | 53 |
| C8075 | 75-95 | 1000 | 70 |
| C8095 | 95-210 | 1200 | 105 |
Offset Eye
Offset eyes are used for both hauling and load restraint applications. The tubular stocking can be moved down so the attachment point is not necessarily at the absolute end of the cable. These grips are available in soft or thimble eye variations and in different material configurations to suit specific applications.
O1 - Galvanised Strand | Alloy Ferrule
O2 - Galvanised Strand | Alloy Ferrule | Galvanised Thimble
O3 - Galvanised Strand | Copper Ferrule
O4 - Galvanised Strand | Copper Ferrule | Galvanised Thimble
O5 - Stainless Steel Strand | Copper Ferrule
O6 - Stainless Steel Strand | Copper Ferrule | Stainless Steel Thimble
O7 - Stainless Steel Strand | Stainless Steel Ferrule | Stainless Steel Thimble
O8 - Kevlar Strand | Polymer Sheath | Offset Eye
Construction
- Galvanised Strand
- Alloy Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| O1006 | 6-12 | 350 | 5 |
| O1010 | 10-14 | 350 | 5 |
| O1014 | 14-19 | 400 | 9 |
| O1019 | 19-28 | 500 | 15 |
| O1028 | 28-40 | 600 | 24 |
| O1040 | 40-55 | 800 | 35 |
| O1055 | 55-75 | 900 | 62 |
| O1075 | 75-95 | 1000 | 98 |
| O1095 | 95-120 | 1200 | 133 |
| O1120 | 120-150 | 1400 | 187 |
| O1150 | 150-190 | 1600 | 283 |
Construction
- Galvanised Strand
- Alloy Ferrule
- Galvanised Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| O2006 | 6-12 | 350 | 5 |
| O2010 | 10-14 | 350 | 5 |
| O2014 | 14-19 | 400 | 9 |
| O2019 | 19-28 | 500 | 15 |
| O2028 | 28-40 | 600 | 24 |
| O2040 | 40-55 | 800 | 35 |
| O2055 | 55-75 | 900 | 62 |
| O2075 | 75-95 | 1000 | 98 |
| O2095 | 95-120 | 1200 | 133 |
| O2120 | 120-150 | 1400 | 187 |
| O2150 | 150-190 | 1600 | 283 |
Construction
- Galvanised Strand
- Copper Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| O3006 | 6-12 | 350 | 5 |
| O3010 | 10-14 | 350 | 5 |
| O3014 | 14-19 | 400 | 9 |
| O3019 | 19-28 | 500 | 15 |
| O3028 | 28-40 | 600 | 24 |
| O3040 | 40-55 | 800 | 35 |
| O3055 | 55-75 | 900 | 62 |
| O3075 | 75-95 | 1000 | 98 |
| O3095 | 95-120 | 1200 | 133 |
| O3120 | 120-150 | 1400 | 187 |
| O3150 | 150-190 | 1600 | 283 |
Construction
- Galvanised Strand
- Copper Ferrule
- Galvanised Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| O4006 | 6-12 | 350 | 5 |
| O4010 | 10-14 | 350 | 5 |
| O4014 | 14-19 | 400 | 9 |
| O4019 | 19-28 | 500 | 15 |
| O4028 | 28-40 | 600 | 24 |
| O4040 | 40-55 | 800 | 35 |
| O4055 | 55-75 | 900 | 62 |
| O4075 | 75-95 | 1000 | 98 |
| O4095 | 95-120 | 1200 | 133 |
| O4120 | 120-150 | 1400 | 187 |
| O4150 | 150-190 | 1600 | 283 |
Construction
- Stainless Seel Strand
- Copper Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| O5006 | 6-12 | 350 | 4 |
| O5010 | 10-14 | 350 | 4 |
| O5014 | 14-19 | 400 | 7 |
| O5019 | 19-28 | 500 | 12 |
| O5028 | 28-40 | 600 | 19 |
| O5040 | 40-55 | 800 | 27 |
| O5055 | 55-75 | 900 | 48 |
| O5075 | 75-95 | 1000 | 79 |
| O5095 | 95-120 | 1200 | 105 |
| O5120 | 120-150 | 1400 | 147 |
| O5150 | 150-190 | 1600 | 225 |
Construction
- Stainless Seel Strand
- Copper Ferrule
- Stainless Steel Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| O6006 | 6-12 | 350 | 4 |
| O6010 | 10-14 | 350 | 4 |
| O6014 | 14-19 | 400 | 7 |
| O6019 | 19-28 | 500 | 12 |
| O6028 | 28-40 | 600 | 19 |
| O6040 | 40-55 | 800 | 27 |
| O6055 | 55-75 | 900 | 48 |
| O6075 | 75-95 | 1000 | 79 |
| O6095 | 95-120 | 1200 | 105 |
| O6120 | 120-150 | 1400 | 147 |
| O6150 | 150-190 | 1600 | 225 |
Construction
- Stainless Seel Strand
- Stainless Steel Ferrule
- Stainless Steel Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| O7006 | 6-12 | 350 | 4 |
| O7010 | 10-14 | 350 | 4 |
| O7014 | 14-19 | 400 | 7 |
| O7019 | 19-28 | 500 | 12 |
| O7028 | 28-40 | 600 | 19 |
| O7040 | 40-55 | 800 | 27 |
| O7055 | 55-75 | 900 | 48 |
| O7075 | 75-95 | 1000 | 79 |
| O7095 | 95-120 | 1200 | 105 |
| O7120 | 120-150 | 1400 | 147 |
| O7150 | 150-190 | 1600 | 225 |
Construction
- Kevlar Strand
- Polymer Sheath
- Offset Eye
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| O8006 | 6-12 | 350 | 13 |
| O8010 | 10-14 | 350 | 13 |
| O8014 | 14-19 | 400 | 13 |
| O8019 | 19-28 | 500 | 18 |
| O8028 | 28-40 | 600 | 28 |
| O8040 | 40-55 | 800 | 45 |
| O8055 | 55-75 | 900 | 52 |
| C8075 | 75-95 | 1000 |
Double Eye
For hauling or load restraint applications where the cable will be pulled with one eye and then attached to a fixed point with the other, double eyes are necessary. Note that UTS ratings are based on uniformly pulling the stocking in a straight line with both eyes. If hauling with one eye, the UTS will be reduced by at least half.
D1 - Galvanised Strand | Alloy Ferrule
D2 - Galvanised Strand | Alloy Ferrule | Galvanised Thimble
D3 - Galvanised Strand | Copper Ferrule
D4 - Galvanised Strand | Copper Ferrule | Galvanised Thimble
D5 - Stainless Steel Strand | Copper Ferrule
D6 - Stainless Steel Strand | Copper Ferrule | Stainless Steel Thimble
D7 - Stainless Steel Strand | Stainless Steel Ferrule | Stainless Steel Thimble
D8 - Kevlar Strand | Polymer Sheath | Double Eye
Construction
- Galvanised Strand
- Alloy Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| D1006 | 6-12 | 350 | 5 |
| D1010 | 10-14 | 350 | 5 |
| D1014 | 14-19 | 400 | 9 |
| D1019 | 19-28 | 500 | 15 |
| D1028 | 28-40 | 600 | 24 |
| D1040 | 40-55 | 800 | 35 |
| D1055 | 55-75 | 900 | 62 |
| D1075 | 75-95 | 1000 | 98 |
| D1095 | 95-120 | 1200 | 133 |
| D1120 | 120-150 | 1400 | 187 |
| D1150 | 150-190 | 1600 | 283 |
Construction
- Galvanised Strand
- Alloy Ferrule
- Galvanised Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| C2006 | 6-12 | 350 | 5 |
| C2010 | 10-14 | 350 | 5 |
| C2014 | 14-19 | 400 | 9 |
| C2019 | 19-28 | 500 | 15 |
| C2028 | 28-40 | 600 | 24 |
| C2040 | 40-55 | 800 | 35 |
| C2055 | 55-75 | 900 | 62 |
| C2075 | 75-95 | 1000 | 98 |
| C2095 | 95-120 | 1200 | 133 |
| C2120 | 120-150 | 1400 | 187 |
| C2150 | 150-190 | 1600 | 283 |
Construction
- Galvanised Strand
- Copper Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| D3006 | 6-12 | 350 | 5 |
| D3010 | 10-14 | 350 | 5 |
| D3014 | 14-19 | 400 | 9 |
| D3019 | 19-28 | 500 | 15 |
| D3028 | 28-40 | 600 | 24 |
| D3040 | 40-55 | 800 | 35 |
| D3055 | 55-75 | 900 | 62 |
| D3075 | 75-95 | 1000 | 98 |
| D3095 | 95-120 | 1200 | 133 |
| D3120 | 120-150 | 1400 | 187 |
| D3150 | 150-190 | 1600 | 283 |
Construction
- Galvanised Strand
- Copper Ferrule
- Galvanised Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| D4006 | 6-12 | 350 | 5 |
| D4010 | 10-14 | 350 | 5 |
| D4014 | 14-19 | 400 | 9 |
| D4019 | 19-28 | 500 | 15 |
| D4028 | 28-40 | 600 | 24 |
| D4040 | 40-55 | 800 | 35 |
| D4055 | 55-75 | 900 | 62 |
| D4075 | 75-95 | 1000 | 98 |
| D4095 | 95-120 | 1200 | 133 |
| D4120 | 120-150 | 1400 | 187 |
| D4150 | 150-190 | 1600 | 283 |
Construction
- Stainless Seel Strand
- Copper Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| D5006 | 6-12 | 350 | 4 |
| D5010 | 10-14 | 350 | 4 |
| D5014 | 14-19 | 400 | 7 |
| D5019 | 19-28 | 500 | 12 |
| D5028 | 28-40 | 600 | 19 |
| D5040 | 40-55 | 800 | 27 |
| D5055 | 55-75 | 900 | 48 |
| D5075 | 75-95 | 1000 | 79 |
| D5095 | 95-120 | 1200 | 105 |
| D5120 | 120-150 | 1400 | 147 |
| D5150 | 150-190 | 1600 | 225 |
Construction
- Stainless Seel Strand
- Copper Ferrule
- Stainless Steel Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| D6006 | 6-12 | 350 | 4 |
| D6010 | 10-14 | 350 | 4 |
| D6014 | 14-19 | 400 | 7 |
| D6019 | 19-28 | 500 | 12 |
| D6028 | 28-40 | 600 | 19 |
| D6040 | 40-55 | 800 | 27 |
| D6055 | 55-75 | 900 | 48 |
| D6075 | 75-95 | 1000 | 79 |
| D6095 | 95-120 | 1200 | 105 |
| D6120 | 120-150 | 1400 | 147 |
| D6150 | 150-190 | 1600 | 225 |
Construction
- Stainless Seel Strand
- Stainless Steel Ferrule
- Stainless Steel Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| D7006 | 6-12 | 350 | 4 |
| D7010 | 10-14 | 350 | 4 |
| D7014 | 14-19 | 400 | 7 |
| D7019 | 19-28 | 500 | 12 |
| D7028 | 28-40 | 600 | 19 |
| D7040 | 40-55 | 800 | 27 |
| D7055 | 55-75 | 900 | 48 |
| D7075 | 75-95 | 1000 | 79 |
| D7095 | 95-120 | 1200 | 105 |
| D7120 | 120-150 | 1400 | 147 |
| D7150 | 150-190 | 1600 | 225 |
Construction
- Kevlar Strand
- Polymer Sheath
- Double Eye
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| D8006 | 6-12 | 350 | 12 |
| D8010 | 10-14 | 350 | 12 |
| D8014 | 14-19 | 400 | 12 |
| D8019 | 19-28 | 500 | 18 |
| D8028 | 28-40 | 600 | 30 |
| D8040 | 40-55 | 800 | 36 |
| D8055 | 55-75 | 900 | 53 |
| D8075 | 75-95 | 1000 | 70 |
| D8095 | 95-120 | 1200 | 105 |
Lace-Up Offset Eye
When sliding a tubular stocking over the end of the cable isn’t possible, lace-up offset eyes with a flat woven construction are used. With the stocking wrapped around the cable and ‘laced up’ like a shoelace with a separate wire, this can be moved down so the attachment point isn’t necessarily at the absolute end of the cable.
S1 - Galvanised Strand | Alloy Ferrule
S2- Galvanised Strand | Alloy Ferrule | Galvanised Thimble
S3 - Galvanised Strand | Copper Ferrule
S4 - Galvanised Strand | Copper Ferrule | Galvanised Thimble
S5 - Stainless Steel Strand | Copper Ferrule
S6 - Stainless Steel Strand | Copper Ferrule | Stainless Steel Thimble
S7 - Stainless Steel Strand | Stainless Steel Ferrule | Stainless Steel Thimble
Construction
- Galvanised Strand
- Alloy Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| S1014 | 14-19 | 500 | 9 |
| S1019 | 19-28 | 600 | 15 |
| S1028 | 28-40 | 800 | 24 |
| S1040 | 40-55 | 900 | 35 |
| S1055 | 55-75 | 1000 | 62 |
| S1075 | 75-95 | 1200 | 98 |
| S1095 | 95-120 | 1400 | 98 |
| S1120 | 120-150 | 1600 | 141 |
| S1150 | 150-190 | 1800 | 141 |
Construction
- Galvanised Strand
- Alloy Ferrule
- Galvanised Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| S2014 | 14-19 | 500 | 9 |
| S2019 | 19-28 | 600 | 15 |
| S2028 | 28-40 | 800 | 24 |
| S2040 | 40-55 | 900 | 35 |
| S2055 | 55-75 | 1000 | 62 |
| S2075 | 75-95 | 1200 | 98 |
| S2095 | 95-120 | 1400 | 98 |
| S2120 | 120-150 | 1600 | 141 |
| S2150 | 150-190 | 1800 | 141 |
Construction
- Galvanised Strand
- Copper Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| S3014 | 14-19 | 500 | 9 |
| S3019 | 19-28 | 600 | 15 |
| S3028 | 28-40 | 800 | 24 |
| S3040 | 40-55 | 900 | 35 |
| S3055 | 55-75 | 1000 | 62 |
| S3075 | 75-95 | 1200 | 98 |
| S3095 | 95-120 | 1400 | 98 |
| S3120 | 120-150 | 1600 | 141 |
| S3150 | 150-190 | 1800 | 141 |
Construction
- Galvanised Strand
- Copper Ferrule
- Galvanised Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| S4014 | 14-19 | 500 | 9 |
| S4019 | 19-28 | 600 | 15 |
| S4028 | 28-40 | 800 | 24 |
| S4040 | 40-55 | 900 | 35 |
| S4055 | 55-75 | 1000 | 62 |
| S4075 | 75-95 | 1200 | 98 |
| S4095 | 95-120 | 1400 | 98 |
| S4120 | 120-150 | 1600 | 141 |
Construction
- Stainless Seel Strand
- Copper Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| S5014 | 14-19 | 500 | 7 |
| S5019 | 19-28 | 600 | 12 |
| S5028 | 28-40 | 800 | 19 |
| S5040 | 40-55 | 900 | 27 |
| S5055 | 55-75 | 1000 | 48 |
| S5075 | 75-95 | 1200 | 79 |
| S5095 | 95-120 | 1400 | 79 |
| S5120 | 120-150 | 1600 | 112 |
| S5150 | 150-190 | 1800 | 112 |
Construction
- Stainless Seel Strand
- Copper Ferrule
- Stainless Steel Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| S6014 | 14-19 | 500 | 7 |
| S6019 | 19-28 | 600 | 12 |
| S6028 | 28-40 | 800 | 19 |
| S6040 | 40-55 | 900 | 27 |
| S6055 | 55-75 | 1000 | 48 |
| S6075 | 75-95 | 1200 | 79 |
| S6095 | 95-120 | 1400 | 79 |
| S6120 | 120-150 | 1600 | 112 |
| S6150 | 150-190 | 1800 | 112 |
Construction
- Stainless Seel Strand
- Stainless Steel Ferrule
- Stainless Steel Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| S7014 | 14-19 | 500 | 7 |
| S7019 | 19-28 | 600 | 12 |
| S7028 | 28-40 | 800 | 19 |
| S7040 | 40-55 | 900 | 27 |
| S7055 | 55-75 | 1000 | 48 |
| S7075 | 75-95 | 1200 | 79 |
| S7095 | 95-120 | 1400 | 79 |
| S7120 | 120-150 | 1600 | 112 |
| S7150 | 150-190 | 1800 | 112 |
Lace-Up Double Eye
The flat woven construction of lace-up double eyes works when sliding a tubular stocking over the end of the cable isn’t possible and the cable will be pulled with one eye and attached to a fixed point with the other. Note that UTS ratings are based on uniformly pulling the stocking in a straight line with both eyes. If hauling with one eye, the UTS will be reduced by at least half.
SA - Galvanised Strand | Alloy Ferrule
SB - Galvanised Strand | Alloy Ferrule | Galvanised Thimble
SC - Galvanised Strand | Copper Ferrule
SD - Galvanised Strand | Copper Ferrule | Galvanised Thimble
SE - Stainless Steel Strand | Copper Ferrule
SF - Stainless Steel Strand | Copper Ferrule | Stainless Steel Thimble
SG - Stainless Steel Strand | Stainless Steel Ferrule | Stainless Steel Thimble
Construction
- Galvanised Strand
- Alloy Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| SA014 | 14-19 | 500 | 9 |
| SA019 | 19-28 | 600 | 15 |
| SA028 | 28-40 | 800 | 24 |
| SA040 | 40-55 | 900 | 35 |
| SA055 | 55-75 | 1000 | 62 |
| SA075 | 75-95 | 1200 | 98 |
| SA095 | 95-120 | 1400 | 133 |
| SA120 | 120-150 | 1600 | 187 |
| SA150 | 150-190 | 1800 | 283 |
Construction
- Galvanised Strand
- Alloy Ferrule
- Galvanised Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| SB014 | 14-19 | 500 | 9 |
| SB019 | 19-28 | 600 | 15 |
| SB028 | 28-40 | 800 | 24 |
| SB040 | 40-55 | 900 | 35 |
| SB055 | 55-75 | 1000 | 62 |
| SB075 | 75-95 | 1200 | 98 |
| SB095 | 95-120 | 1400 | 133 |
| SB120 | 120-150 | 1600 | 187 |
| SB150 | 150-190 | 1800 | 283 |
Construction
- Galvanised Strand
- Copper Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| SC014 | 14-19 | 500 | 9 |
| SC019 | 19-28 | 600 | 15 |
| SC028 | 28-40 | 800 | 24 |
| SC040 | 40-55 | 900 | 35 |
| SC055 | 55-75 | 1000 | 62 |
| SC075 | 75-95 | 1200 | 98 |
| SC095 | 95-120 | 1400 | 133 |
| SC120 | 120-150 | 1600 | 187 |
| SC150 | 150-190 | 1800 | 283 |
Construction
- Galvanised Strand
- Copper Ferrule
- Galvanised Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| SD014 | 14-19 | 500 | 9 |
| SD019 | 19-28 | 600 | 15 |
| SD028 | 28-40 | 800 | 24 |
| SD040 | 40-55 | 900 | 35 |
| SD055 | 55-75 | 1000 | 62 |
| SD075 | 75-95 | 1200 | 98 |
| SD095 | 95-120 | 1400 | 133 |
| SD120 | 120-150 | 1600 | 187 |
| SD150 | 150-190 | 1800 | 283 |
Construction
- Stainless Steel Strand
- Copper Ferrule
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| SE014 | 14-19 | 500 | 7 |
| SE019 | 19-28 | 600 | 12 |
| SE028 | 28-40 | 800 | 19 |
| SE040 | 40-55 | 900 | 27 |
| SE055 | 55-75 | 1000 | 48 |
| SE075 | 75-95 | 1200 | 79 |
| SE095 | 95-120 | 1400 | 79 |
| SE120 | 120-150 | 1600 | 112 |
| SE150 | 150-190 | 1800 | 112 |
Construction
- Stainless Seel Strand
- Copper Ferrule
- Stainless Steel Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| SF014 | 14-19 | 500 | 7 |
| SF019 | 19-28 | 600 | 12 |
| SF028 | 28-40 | 800 | 19 |
| SF040 | 40-55 | 900 | 27 |
| SF055 | 55-75 | 1000 | 48 |
| SF075 | 75-95 | 1200 | 79 |
| SF095 | 95-120 | 1400 | 79 |
| SF120 | 120-150 | 1600 | 112 |
| SF150 | 150-190 | 1800 | 112 |
Construction
- Stainless Seel Strand
- Stainless Steel Ferrule
- Stainless Steel Thimble
| Product Code | Size Range (mm) | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|
| SG014 | 14-19 | 500 | 7 |
| SG019 | 19-28 | 600 | 12 |
| SG028 | 28-40 | 800 | 19 |
| SG040 | 40-55 | 900 | 27 |
| SG055 | 55-75 | 1000 | 48 |
| SG075 | 75-95 | 1200 | 79 |
| SG095 | 95-120 | 1400 | 79 |
| SG120 | 120-150 | 1600 | 112 |
| SG150 | 150-190 | 1800 | 112 |
Non-Conductive Low Voltage
Designed for hauling specific types of Low Voltage Aerial Bundled Conductors, these grips are constructed from monofilament nylon with alloy ferrules. The non-conductive low voltage stockings are typically standard cap style with a soft eye.
Construction
- Nylon Strand
- Alloy Ferrule
- Soft Eye
| Product Code | Suits Low Voltage ABC Sizes | Size Range (mm) | Number of Ply | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|---|---|
| LV225 | 2×25 mm2 LV | 14-19 | 2 | 600 | 15 |
| LV235 | 2×35 mm2 LV | 14-19 | 2 | 600 | 15 |
| LV335 | 3×35 mm2 LV | 14-19 | 2 | 600 | 15 |
| LV250 | 2×50 mm2 LV | 19-28 | 2 | 600 | 15 |
| LV295 | 2×95 mm2 LV | 20-30 | 2 | 600 | 15 |
| LV425 | 4×25 mm2 LV | 20-40 | 2 | 600 | 15 |
| LV435 | 4×35 mm2 LV | 19-28 | 2 | 600 | 15 |
| LV450 | 4×50 mm2 LV | 20-30 | 2 | 600 | 15 |
| LV470 | 4×70 mm2 LV | 19-28 | 2 | 600 | 17 |
| LV395 | 3×35 mm2 LV | 20-40 | 3 | 600 | 25 |
| LV495 | 4×95 mm2 LV | 20-40 | 3 | 800 | 25 |
| LV4150 | 4×150 mm2 LV | 30-50 | 3 | 800 | 25 |
Note: Also available in double / offset eye
Non-Conductive High Voltage
Designed for hauling specific types of High Voltage Aerial Bundled Conductors, these grips are constructed from monofilament nylon with alloy ferrules. The non-conductive high voltage stockings are typically double eye style with soft eyes.
Construction
- Nylon Strand
- Alloy Ferrule
- Soft Eye
| Product Code | Suits Low Voltage ABC Sizes | Size Range (mm) | Number of Ply | Grip Length (mm) | Ultimate Tensile Strength (kN) |
|---|---|---|---|---|---|
| HV335 | 3×35 mm2 LV | 40-55 | 3 | 800 | 25 |
| HV350 | 3×50 mm2 LV | 40-55 | 3 | 800 | 25 |
| HV370 | 3×70 mm2 LV | 40-55 | 3 | 800 | 25 |
| HV395 | 3×95 mm2 LV | 50-65 | 4 | 900 | 31 |
| HV3120 | 3×120 mm2 LV | 50-65 | 4 | 900 | 31 |
| HV3150 | 3×150 mm2 LV | 55-75 | 4 | 900 | 31 |
| HV3185 | 3×185 mm2 LV | 55-75 | 4 | 900 | 31 |
Note: Also available in double / offset eye
Heavy Duty Graded Weave
Heavy duty graded weave provides very high strength at lower diameters and is made for hauling conductors. Multiple ply weave is added in stages along the length of the stocking and copper or plastic shoulders ensure extra wear protection. These grips are available in custom configurations such a wire-rope eye and double ended.
Construction
- Multi Ply
- Galvanised Strand
- Alloy Ferrule
- Soft Eye
| Product Code | Size Range (mm) | Product Style |
|---|---|---|
| HDGW08CS | 8-11 | Single Eye Cap |
| HDGW10CS | 10-15 | Single Eye Cap |
| HDGW15CS | 15-21 | Single Eye Cap |
| HDGW20CS | 20-29 | Single Eye Cap |
| HDGW27CS | 27-35 | Single Eye Cap |
| HDGW32CS | 32-37 | Single Eye Cap |
Note: Available without copper shoulder on request
Light Duty
NCG provide access to a range of lighter duty grips made for low tension and low abrasion applications. These type of cable stockings are typically used when size, weight or cost are important factors.
Construction
- Single Ply
- Galvanised Strand
- Alloy Ferrule
| Product Code | Size Range (mm) | Product Style |
|---|---|---|
| LD06 | 6-9 | Single Eye Cap |
| LD09 | 9-12 | Single Eye Cap |
| LD12 | 12-16 | Single Eye Cap |
| LD16 | 16-20 | Single Eye Cap |
| LD20 | 20-25 | Single Eye Cap |
| LD25 | 25-32 | Single Eye Cap |
Heavy Duty
For applications that require a higher than standard breaking load, NCG offer a range of heavy duty grips in most common styles, and can produce custom strengths upon request where possible.
Construction
- Multi Ply
- Galvanised Strand
- Alloy Ferrule
- Soft or Thimble Eye
| Product Code | Size Range (mm) | Product Style |
|---|---|---|
| CHD1004 | 4-7 | Single Eye Cap |
| CHD1006 | 6-11 | Single Eye Cap |
| CHD1010 | 10-14 | Single Eye Cap |
| CHD1014 | 14-19 | Single Eye Cap |
| CHD1019 | 19-28 | Single Eye Cap |
| CHD1028 | 28-40 | Single Eye Cap |
| CHD1040 | 40-55 | Single Eye Cap |
| CHD1055 | 55-75 | Single Eye Cap |
| CHD1075 | 75-95 | Single Eye Cap |
Open Both Ends
Open both ends are typically used for joining two cables, where one end is terminated by brazing. These woven socks are readily available in both galvanised and stainless steel versions.
OBE - Two Ply | Galvanised Strand
OBESS - Two Ply | Stainless Steel Strand
Construction
- Two Ply
- Galvanised Strand
| Product Code | Size Range (mm) | Product Style |
|---|---|---|
| OBE010 | 10-14 | Open Both Ends |
| OBE014 | 14-19 | Open Both Ends |
| OBE019 | 19-28 | Open Both Ends |
| OBE028 | 28-40 | Open Both Ends |
| OBE040 | 40-55 | Open Both Ends |
| OBE055 | 55-75 | Open Both Ends |
Construction
- Two Ply
- Stainless Steel Strand
| Product Code | Size Range (mm) | Product Style |
|---|---|---|
| OBE010SS | 10-14 | Open Both Ends |
| OBE014SS | 14-19 | Open Both Ends |
| OBE019SS | 19-28 | Open Both Ends |
| OBE028SS | 28-40 | Open Both Ends |
From selection, inspection, preparation and fitting, here’s everything you need to know to make NCG cable stockings part of your solution:
NCG Cable Stockings Catalogue
HOSE RESTRAINTS
A hose restraint is a safety device for restraining high-pressure hoses used for fluid, air or other materials. The woven sleeve in the form of a helix significantly reduces uncontrolled movement of a high-pressure hose in the event of disconnection or failure, reducing the risk of personal injury and property damage.
NCG offer a specialised range of Australian made hose restraints:
Double Eye
The most common style of restraint, double eyes are best suited for applications where it’s possible to secure both attachment points to either side of the hose.
HR2 - Two Ply | Galvanised Strand | Alloy Ferrule | Galvanised Thimble | Heat Shrink Protection
HR4 - Two Ply | Galvanised Strand | Copper Ferrule | Galvanised Thimble | Heat Shrink Protection
HR6 - Two Ply | Stainless Steel Strand | Copper Ferrule | Stainless Steel Thimble | Heat Shrink Protection
HR7 - Two Ply | Stainless Steel Strand | Stainless Steel Ferrule | Stainless Steel Thimble | Heat Shrink Protection
HR8 - Kevlar Strand | Polymer Sheath | Vinyl Tubing Eyes
Construction
- Two Ply
- Galvanised Strand
- Alloy Ferrule
- Galvanised Thimble
- Heat Shrink Protection
| Product Code | Size Range to Fit Hose OD (mm) | Net Grip Length on Mean Hose OD (mm) | Ultimate Tensile Strength (kN) | Aggregate Breaking Strength (kN) | Heat Shrink Colour |
|---|---|---|---|---|---|
| HR2010 | 10-14 | 350 | 9 | 15 | Black |
| HR2014 | 14-19 | 400 | 15 | 24 | Black |
| HR2019 | 19-28 | 500 | 24 | 38 | White |
| HR2028 | 28-40 | 600 | 35 | 57 | Brown |
| HR2040 | 40-50 | 800 | 35 | 57 | Orange |
| HR2050 | 50-60 | 900 | 62 | 100 | Yellow |
| HR2060 | 60-70 | 900 | 62 | 100 | Blue |
| HR2070 | 70-85 | 1000 | 62 | 100 | Red |
| HR2085 | 85-100 | 1000 | 98 | 158 | Green |
| HR2100 | 100-120 | 1200 | 98 | 158 | Black |
| HR2120 | 120-150 | 1400 | 133 | 211 | Grey |
| HR2150 | 150-190 | 1600 | 191 | 305 | Light Blue |
Construction
- Two Ply
- Galvanised Strand
- Copper Ferrule
- Galvanised Thimble
- Heat Shrink Protection
| Product Code | Size Range to Fit Hose OD (mm) | Net Grip Length on Mean Hose OD (mm) | Ultimate Tensile Strength (kN) | Aggregate Breaking Strength (kN) | Heat Shrink Colour |
|---|---|---|---|---|---|
| HR4010 | 10-14 | 350 | 9 | 15 | Black |
| HR4014 | 14-19 | 400 | 15 | 24 | Black |
| HR4019 | 19-28 | 500 | 24 | 38 | White |
| HR4028 | 28-40 | 600 | 35 | 57 | Brown |
| HR4040 | 40-50 | 800 | 35 | 57 | Orange |
| HR4050 | 50-60 | 900 | 62 | 100 | Yellow |
| HR4060 | 60-70 | 900 | 62 | 100 | Blue |
| HR4070 | 70-85 | 1000 | 62 | 100 | Red |
| HR4085 | 85-100 | 1000 | 98 | 158 | Green |
| HR4100 | 100-120 | 1200 | 98 | 158 | Black |
| HR4120 | 120-150 | 1400 | 133 | 211 | Grey |
| HR4150 | 150-190 | 1600 | 191 | 305 | Light Blue |
Construction
- Two Ply
- Stainless Steel Strand
- Copper Ferrule
- Stainless Steel Thimble
- Heat Shrink Protection
| Product Code | Size Range to Fit Hose OD (mm) | Net Grip Length on Mean Hose OD (mm) | Ultimate Tensile Strength (kN) | Aggregate Breaking Strength (kN) | Heat Shrink Colour |
|---|---|---|---|---|---|
| HR6010 | 10-14 | 350 | 7 | 13 | Black |
| HR6014 | 14-19 | 400 | 12 | 19 | Black |
| HR6019 | 19-28 | 500 | 19 | 30 | White |
| HR6028 | 28-40 | 600 | 27 | 44 | Brown |
| HR6040 | 40-50 | 800 | 27 | 44 | Orange |
| HR6050 | 50-60 | 900 | 48 | 78 | Yellow |
| HR6060 | 60-70 | 900 | 48 | 78 | Blue |
| HR6070 | 70-85 | 1000 | 48 | 78 | Red |
| HR6085 | 85-100 | 1000 | 79 | 123 | Green |
| HR6100 | 100-120 | 1200 | 79 | 123 | Black |
| HR6120 | 120-150 | 1400 | 103 | 164 | Grey |
| HR6150 | 150-190 | 1600 | 147 | 235 | Light Blue |
Construction
- Two Ply
- Stainless Steel Strand
- Stainless Steel Ferrule
- Stainless Steel Thimble
- Heat Shrink Protection
| Product Code | Size Range to Fit Hose OD (mm) | Net Grip Length on Mean Hose OD (mm) | Ultimate Tensile Strength (kN) | Aggregate Breaking Strength (kN) | Heat Shrink Colour |
|---|---|---|---|---|---|
| HR7010 | 10-14 | 350 | 7 | 13 | Black |
| HR7014 | 14-19 | 400 | 12 | 19 | Black |
| HR7019 | 19-28 | 500 | 19 | 30 | White |
| HR7028 | 28-40 | 600 | 27 | 44 | Brown |
| HR7040 | 40-50 | 800 | 27 | 44 | Orange |
| HR7050 | 50-60 | 900 | 48 | 78 | Yellow |
| HR7060 | 60-70 | 900 | 48 | 78 | Blue |
| HR7070 | 70-85 | 1000 | 48 | 78 | Red |
| HR7085 | 85-100 | 1000 | 79 | 123 | Green |
| HR7100 | 100-120 | 1200 | 79 | 123 | Black |
| HR7120 | 120-150 | 1400 | 103 | 164 | Grey |
| HR7150 | 150-190 | 1600 | 147 | 235 | Light Blue |
Construction
- Kevlar Strand
- Polymer Sheath
- Vinyl Tubing Eyes
| Product Code | Size Range to Fit Hose OD (mm) | Net Grip Length on Mean Hose OD (mm) | Ultimate Tensile Strength (kN) | Aggregate Breaking Strength (kN) |
|---|---|---|---|---|
| HR8010 | 10-14 | 350 | 9 | 16 |
| HR8014 | 14-19 | 400 | 9 | 16 |
| HR8019 | 19-28 | 500 | 15 | 24 |
| HR8028 | 28-40 | 600 | 24 | 40 |
| HR8040 | 40-50 | 800 | 35 | 48 |
| HR8050 | 50-60 | 900 | 35 | 72 |
| HR8060 | 60-70 | 900 | 53 | 72 |
| HR8070 | 70-85 | 1000 | 53 | 72 |
Note: Also available in offset eye with code HRO8
Offset Eye
In physical environments where space is a limitation, offset eye style hose restraints can be effectively used with just one attachment point adjacent to the hose.
HRO2 - Two Ply | Galvanised Strand | Alloy Ferrule | Galvanised Thimble | Heat Shrink Protection
HRO3 - Galvanised Strand | Copper Ferrule | Soft Eye
HRO5 - Stainless Steel Strand | Copper Ferrule | Soft Eye
Construction
- Two Ply
- Galvanised Strand
- Alloy Ferrule
- Galvanised Thimble
- Heat Shrink Protection
| Product Code | Size Range to Fit Hose OD (mm) | Net Grip Length on Mean Hose OD (mm) | Ultimate Tensile Strength (kN) | Aggregate Breaking Strength (kN) |
|---|---|---|---|---|
| HRO2010 | 10-14 | 350 | 9 | 15 |
| HRO2014 | 14-19 | 400 | 15 | 24 |
| HRO2019 | 19-28 | 500 | 24 | 38 |
| HRO2028 | 28-40 | 600 | 35 | 57 |
| HRO2040 | 40-50 | 800 | 35 | 57 |
| HRO2050 | 50-60 | 900 | 62 | 100 |
| HRO2060 | 60-70 | 900 | 62 | 100 |
| HRO2070 | 70-85 | 1000 | 62 | 100 |
| HRO2085 | 85-100 | 1000 | 98 | 158 |
| HRO2100 | 100-120 | 1200 | 98 | 158 |
| HRO2120 | 120-150 | 1400 | 133 | 211 |
| HRO2150 | 150-190 | 1600 | 191 | 305 |
Construction
- Galvanised Strand
- Copper Ferrule
- Soft Eye
| Product Code | Size Range to Fit Hose ID (in) | Net Grip Length on Mean Hose OD (mm) | Ultimate Tensile Strength (kN) | Aggregate Breaking Strength (kN) |
|---|---|---|---|---|
| HRO325 | 1.00 | 650 | 53 | 86 |
| HRO332 | 1.25 | 650 | 53 | 86 |
| HRO340 | 1.50 | 650 | 82 | 132 |
| HRO350 | 2.00 | 650 | 82 | 132 |
| HRO363 | 2.50 | 650 | 122 | 197 |
Construction
- Stainless Steel Strand
- Copper Ferrule
- Soft Eye
| Product Code | Size Range to Fit Hose ID (in) | Net Grip Length on Mean Hose OD (mm) | Ultimate Tensile Strength (kN) | Aggregate Breaking Strength (kN) |
|---|---|---|---|---|
| HRO525 | 1.00 | 650 | 77 | 125 |
| HRO532 | 1.25 | 650 | 77 | 125 |
| HRO540 | 1.50 | 650 | 98 | 158 |
| HRO550 | 2.00 | 650 | 98 | 158 |
| HRO563 | 2.50 | 650 | 147 | 237 |
Double Eye Both Ends
Double end both ends are frequently used for the restraint of small hoses, and also in situations where it’s necessary to secure the entire length of the hose.
Construction
- Two Ply
- Four Thimble Eyes
- Heat Shrink Protection
- Galvanised or Stainless Steel
- Custom Length
| Up to Length (m) | |
|
|---|---|---|
| 1.5 | 4.5 | 8.0 |
| 2.0 | 5.5 | 8.5 |
| 2.5 | 6.0 | 9.0 |
| 3.0 | 6.5 | 9.5 |
| 3.5 | 7.0 | 10.0 |
| 4.0 | 7.5 | Extra 0.50 |
Note: Length measured from anchor point to anchor point
From selection, inspection, preparation and fitting, here’s everything you need to know to make NCG hose restraints part of your solution:
NCG Hose Restraints Catalogue
